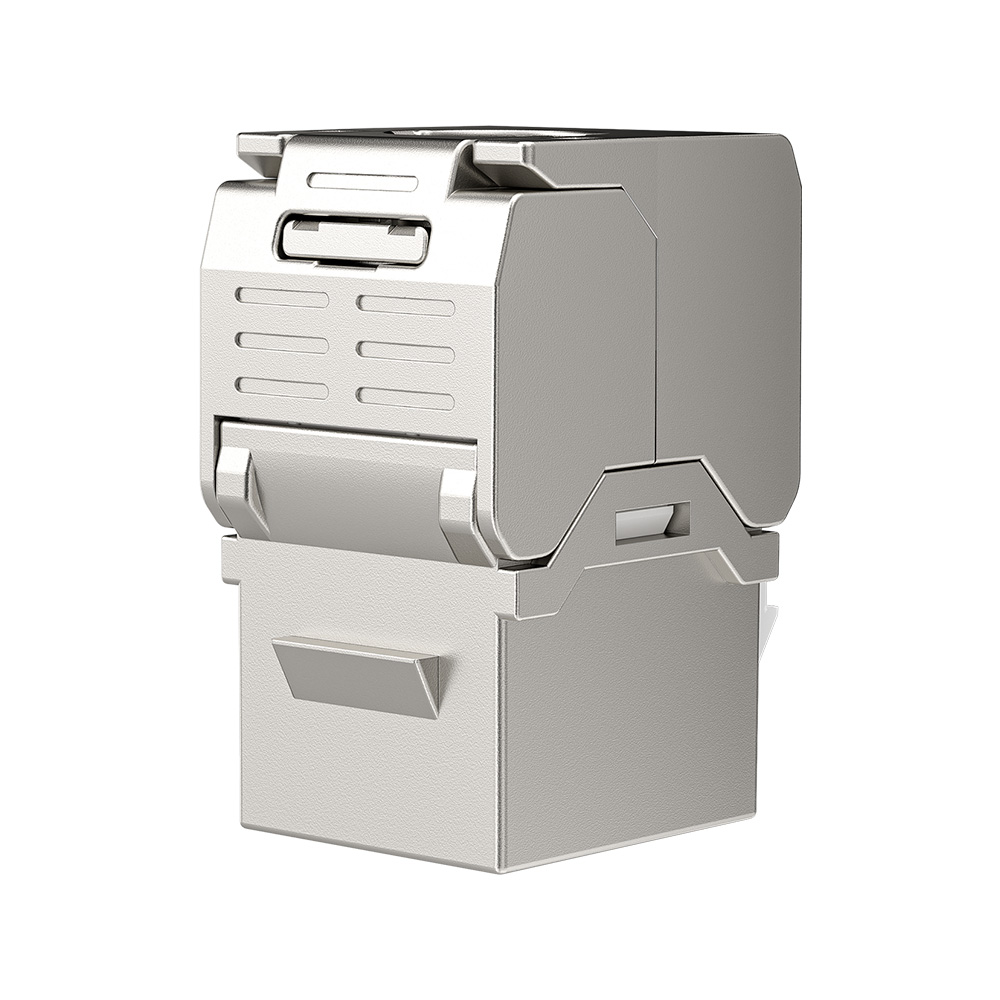

The ENMANE 2076 shielded RJ45 keystone jack uses an ultra-short upright housing developed for efficient installation in high-density structured cabling systems. Its compact profile leaves more clearance between the rear of the module and the cabinet, wall box or mounting enclosure.
A formed metal termination cover closes around the conductor area, while the integrated cable clamp grips the cable sheath without requiring an additional cable tie. This arrangement helps maintain a consistent cable position and reduces strain on the terminated conductors during panel installation and subsequent maintenance.
The zinc-alloy enclosure provides mechanical protection and supports a continuous shielded connection when used within a properly grounded FTP channel. The accessible locking structure makes the module practical for repeated installation work where fast termination, orderly cable dressing and consistent results are important.
Key Features

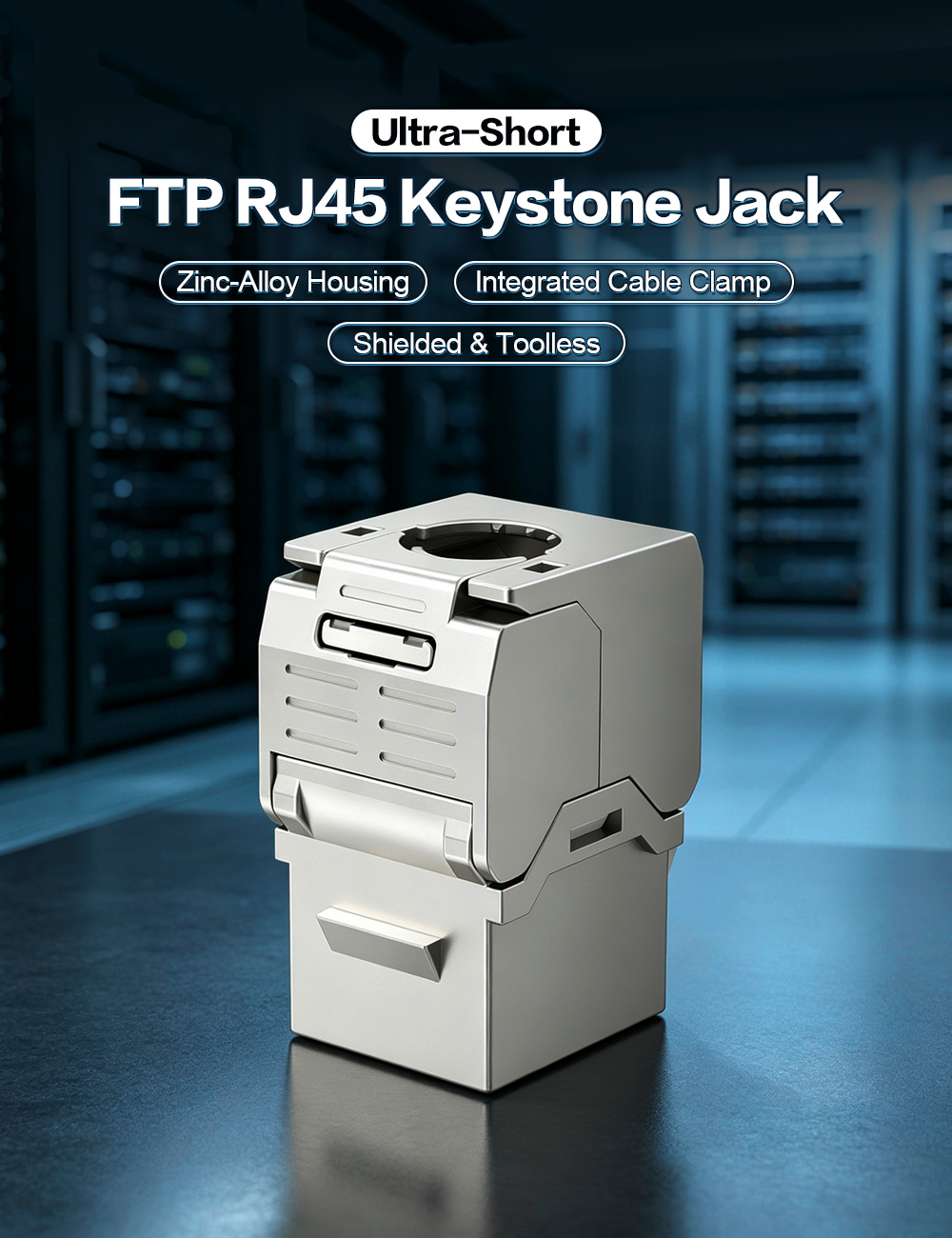

● Ultra-short upright housing: Provides more clearance for cable routing behind densely populated patch panels.
● Integrated cable clamp: Holds the cable sheath securely without requiring a separate cable tie.

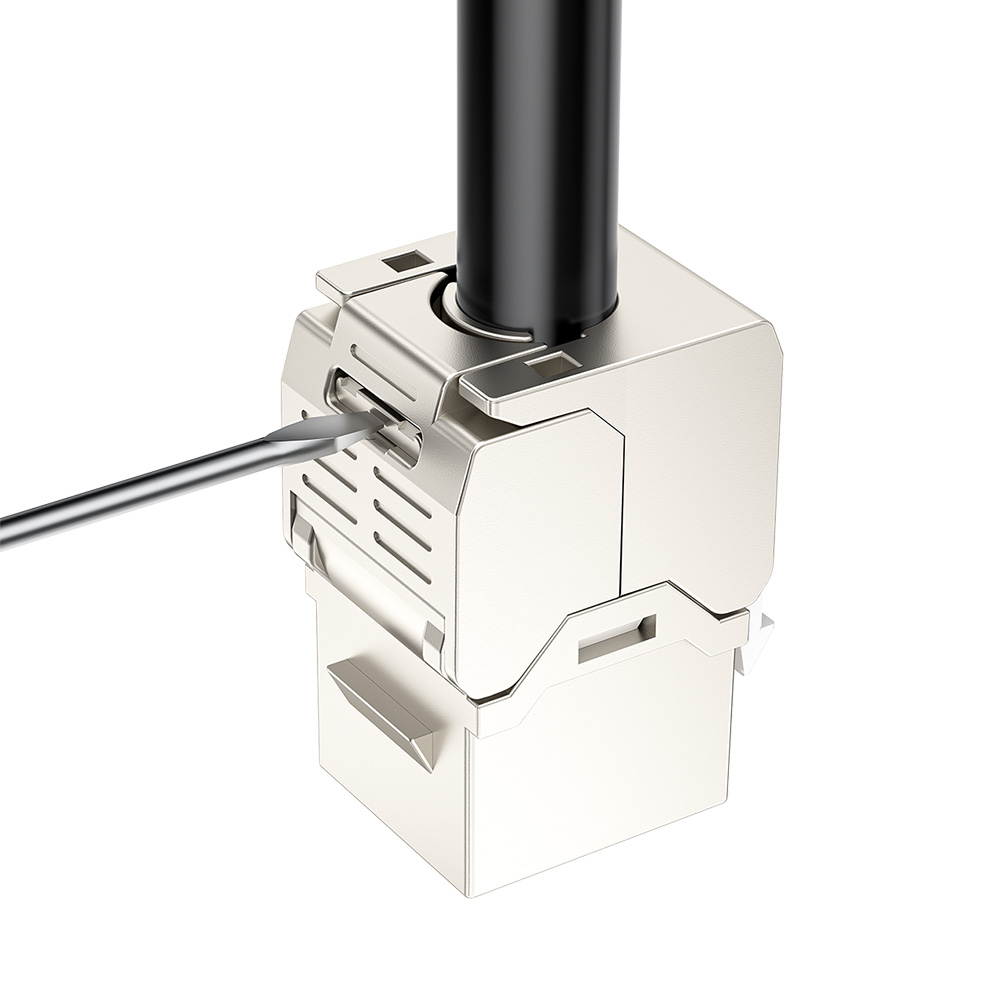

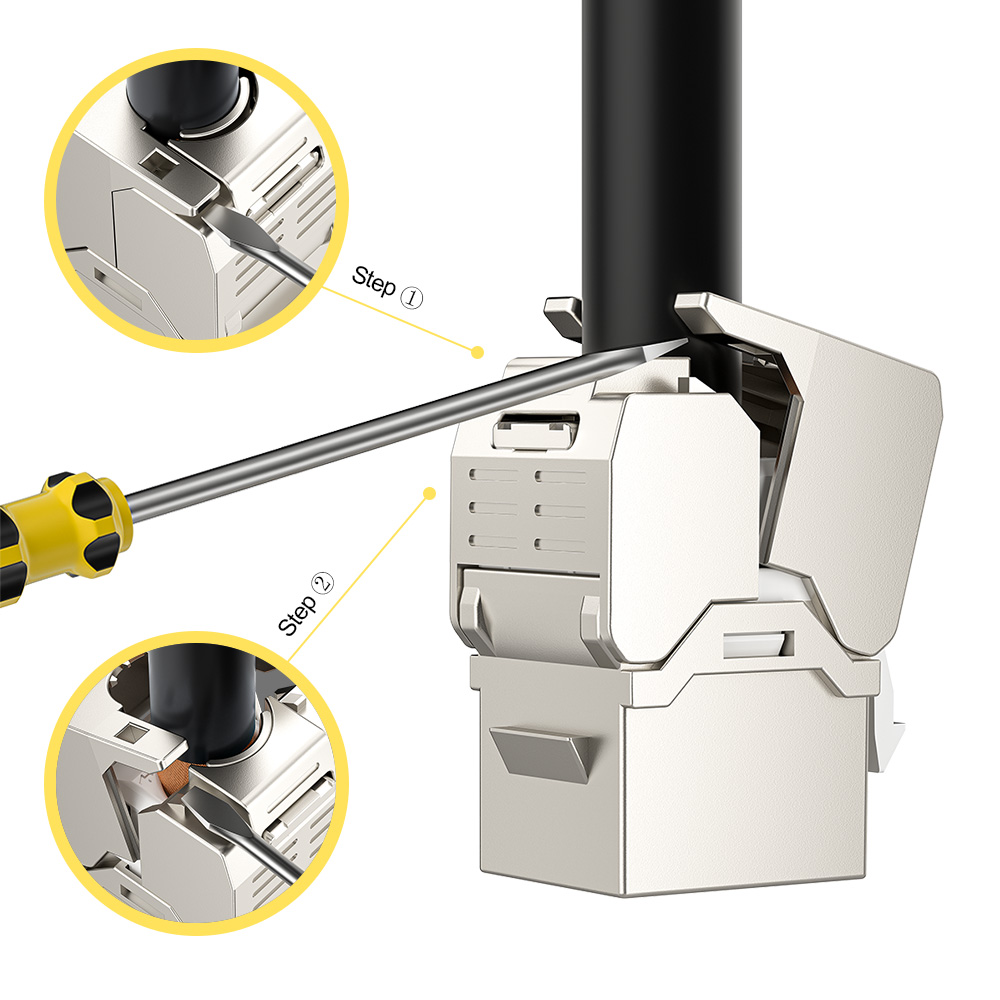

● Installer-friendly locking structure: Accessible metal closure supports fast termination and visual installation checks.
● Protected conductor area: Enclosed design helps prevent movement or disturbance of terminated conductors.
● Zinc-alloy shielding: Metal housing supports shielding continuity and helps control external interference.
● Efficient panel assembly: Compact construction simplifies module installation in confined cabinets and enclosures.
● Gold-plated RJ45 contacts: Durable contact finish supports stable connectivity and resistance to oxidation.
Applications
Suitable for:

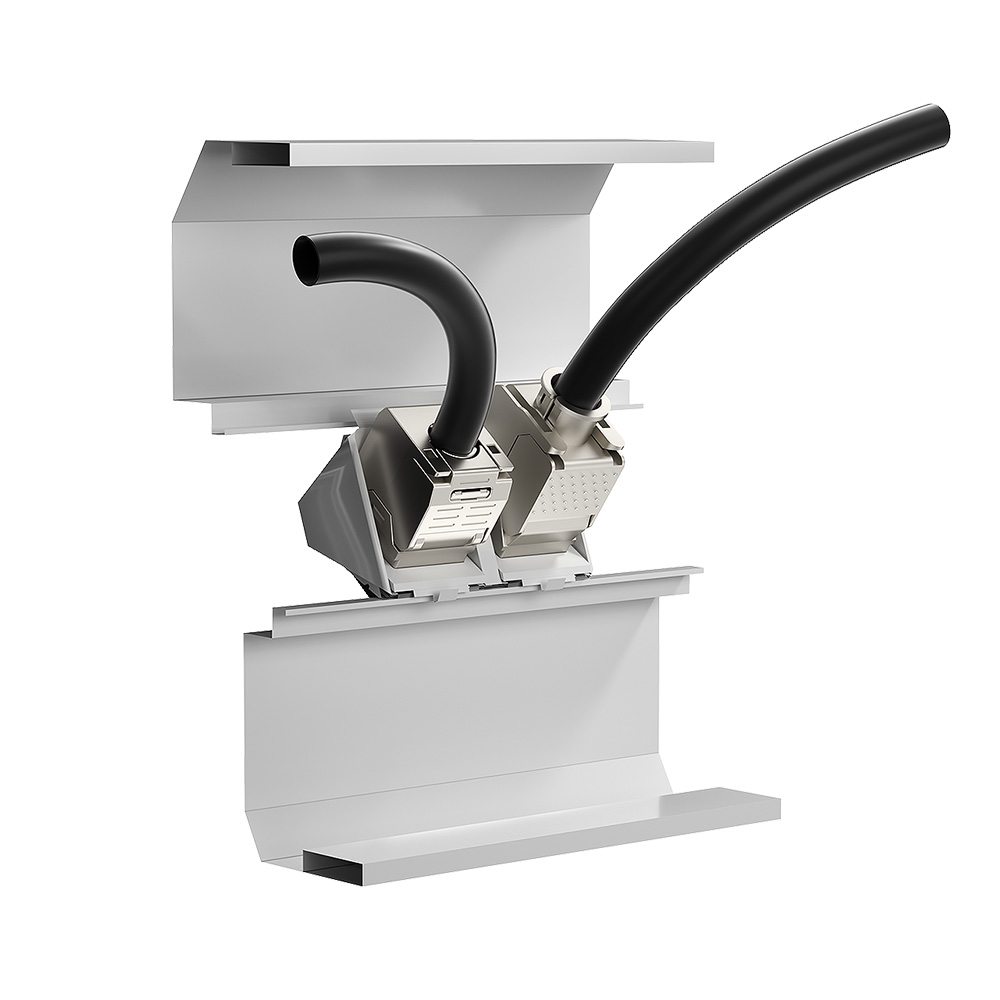

● High-density patch panels and distribution frames
● Telecommunications cabinets with limited rear clearance

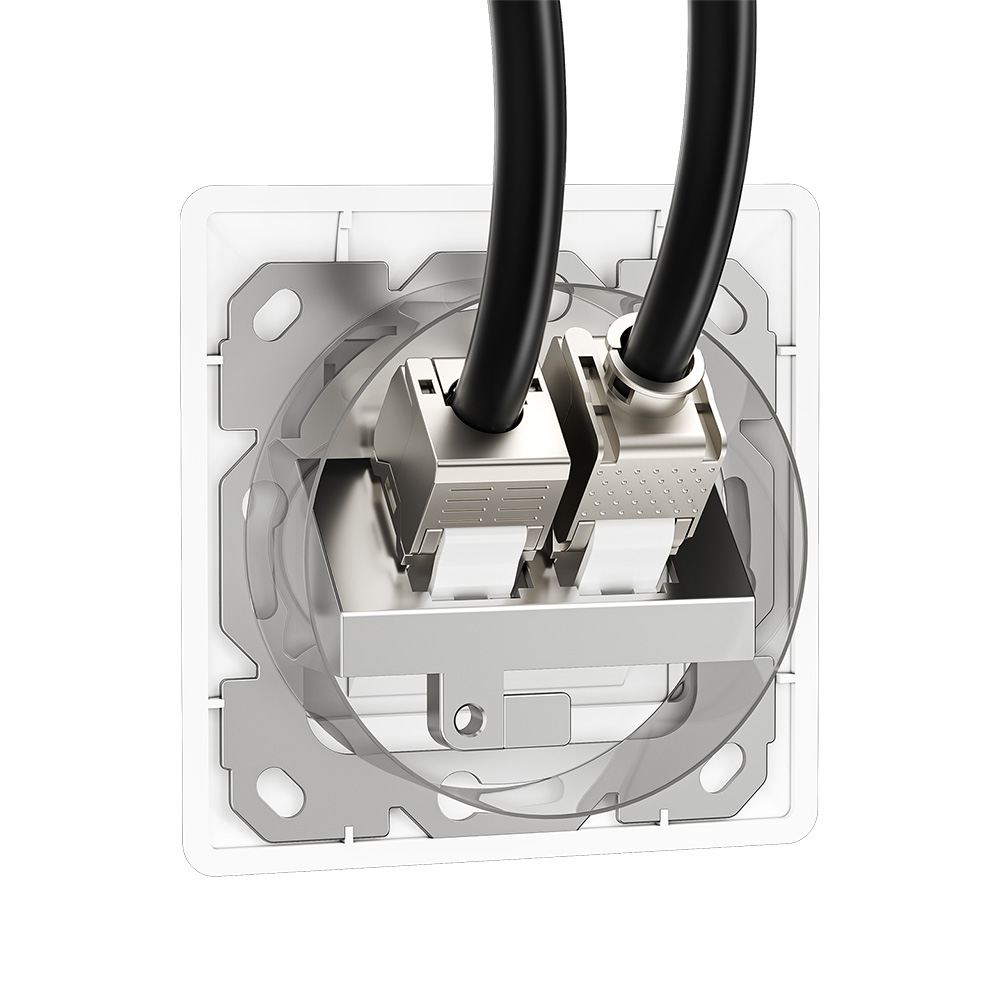

● Shielded wall plates and modular outlets
● Data-centre cross-connect and consolidation areas
● Commercial building structured cabling
● Network projects requiring fast repetitive module installation
