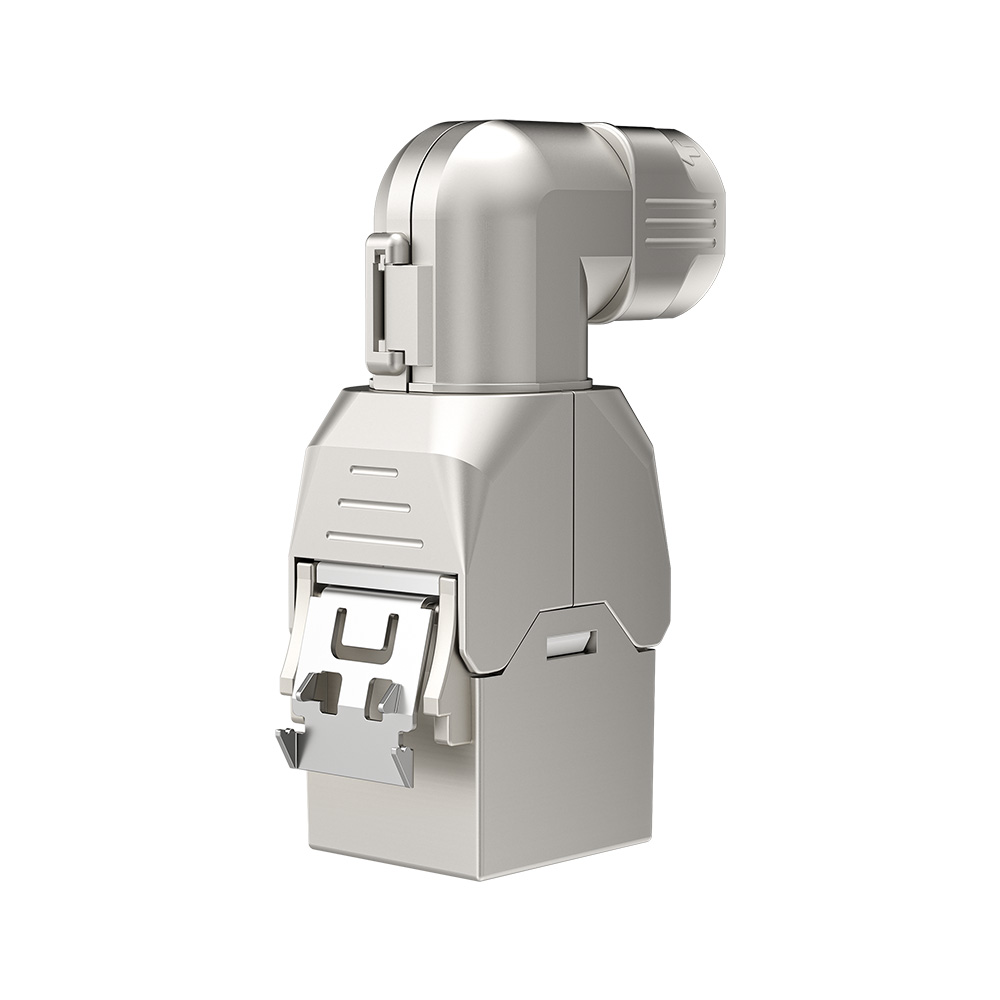

The ENMANE KS142-90 shielded toolless RJ45 keystone jack is designed to route the terminated cable at a 90-degree angle relative to the RJ45 interface. The right-angle structure is particularly effective when the cable must run parallel to the rear surface of a panel, wall box or equipment enclosure.
By changing the cable direction immediately behind the termination point, the module reduces the amount of straight rear clearance required. This makes it suitable for shallow cabinets, side-entry cable pathways and installations where the cable cannot extend directly backwards from the module.
The die-cast zinc-alloy housing provides a rigid shielded enclosure around the connection and termination components. Its reusable toolless mechanism supports conductor inspection and re-termination, while the integrated retention structure helps hold the cable securely in its intended right-angle position.
Key Features
● 90° elbow structure: Routes the terminated cable perpendicular to the RJ45 connection direction.
● Reduced rear-space requirement: Suitable for installations where direct backward cable routing is not possible.
● Side-pathway compatibility: Supports cable routing parallel to panels, walls and enclosure surfaces.
● Cat.8 network application: Intended for high-bandwidth shielded copper network links.
● Reusable locking mechanism: Can be reopened for maintenance, conductor inspection or re-termination.
● Zinc-alloy shielding: Metal housing helps protect the signal path against external interference.
● Integrated strain relief: Helps maintain cable position and reduce stress near the conductor termination area.
Applications
Suitable for:
● Shallow network cabinets and wall boxes
● Side-routing cable-management systems
● Compact equipment and control enclosures
● Right-angle patch-panel termination
● Data-centre and server-cabinet installations
● High-performance shielded network infrastructure
